Logitech Bluetooth Illuminated Keyboard K810

12 English

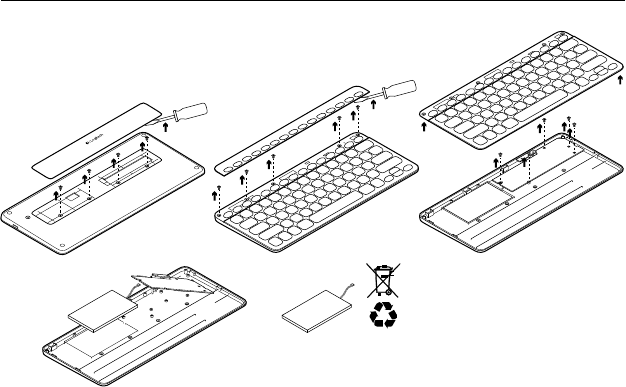

Battery disposal at product end of life

1. On keyboard bottom, pry o cover

and remove 4 screws.

2. On keyboard top, pry o cover

surrounding F-keys and remove

5 screws.

3. Separate top and bottom cases.

4. Remove 5 screws securing circuit board.

5. On bottom of circuit board,

remove battery cable. Remove battery

from bottom case.

6. Dispose of battery and product

according to local laws.

1 2

43

5 6
